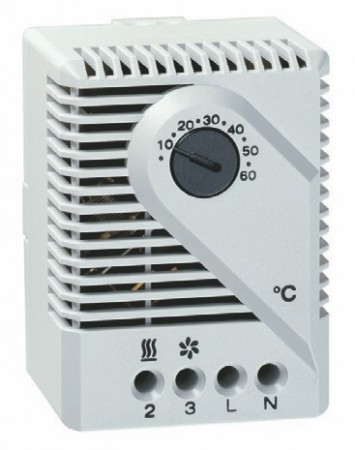

Mechanical Thermostat (FZK Series)
Productbeschrijving
Details
General characteristics
- Temperature range: 5 ... 60 °C adjustable
- Temperature differential: 4 °C ± 1 °C
- Sensor: Bimetallic
- Supply current: 230 - 250 Vac. 50 - 60 Hz
- Contact class: Commuted contacts
- Connection capacity:
Open contact Ohmic charge: 10A, 250 Vac
Inductive charge (cos ϕ = 0'6): 4 A; 250 Vac
Closed contacts: Ohmic charge: 5A, 250 Vac
Inductive charge (cos ϕ = 0'6): 2 A; 250 Vac - Connection: Flanges on the housing, 4 x 2'5 mm²
- Housing: light grey plastic
- Fixing: clip for 35mm DIN rail, EN 50022
- Mounting position: variable
- Protection class: IP 20
Extra informatie
Extra informatie
| Naam | Mechanical Thermostat (FZK Series) |
|---|---|
| Verwachte levering | 1-2 weken |
| Fabrikant | Electricfor |
