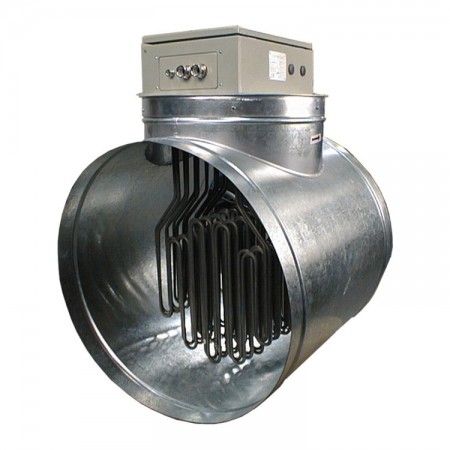

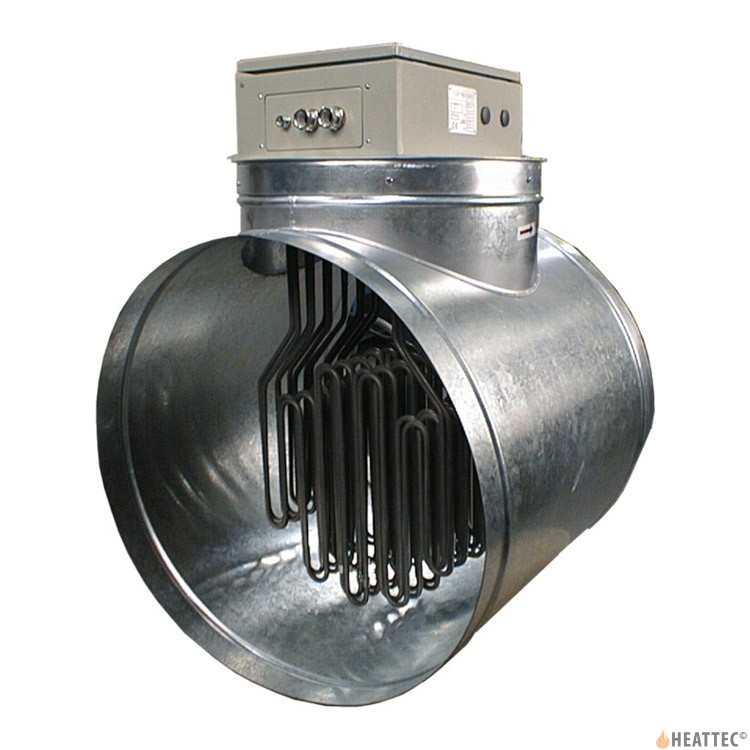

Mono-phase Electric Circular Duct Heater BMC
Productbeschrijving
Details
- Class I electrical heater
- Steel painted connections box with degree protection against moisture IP44
- Cylindrical pipe galvanised steel sheet. On request, in stainless steel
- PG for power supply and control cables.
- From 1 to 6 tubular elements in stainless steel tube AISI 321 or AISI 304L of Ø 6.4mm for the single-phase models and Ø8 mm for the three-phase models.
- Built-in safety thermostat of 85ºC. On request, we can supply a safety thermostat of 110ºC.
- 1 or 2 power stages according to models, in both single-phase and three-phase groups.
- Heating elements in unitary voltage ~230V in order to make the different connection options easier.
- High resistance to impacts and splashes of water.
Model
Power (Watts)
Duct diameter (mm)
Weight (Kg)
BMC80-0,5
500
80
0,70
BMC100-0,5
500
100
0,82
BMC100-0,8
800
100
0,82
BMC125-0,75
750
125
0,97
BM2C125-1
500-1000
125
1,8
BM2C160-1,2
600-1200
160
2,1
BMC200-1,7
1700
200
1,4
BM2C200-2,25
1125-2250
200
2,4
Extra informatie
Extra informatie
| Naam | Mono-phase Electric Circular Duct Heater BMC |
|---|---|
| Verwachte levering | 1-2 weken |
| Aansluitspanning | 230V |
| Fabrikant | Electricfor |
| Land van fabricage | Spanje |
